| DONANIM ÖZELLİKLERİ |
| Arabirim |

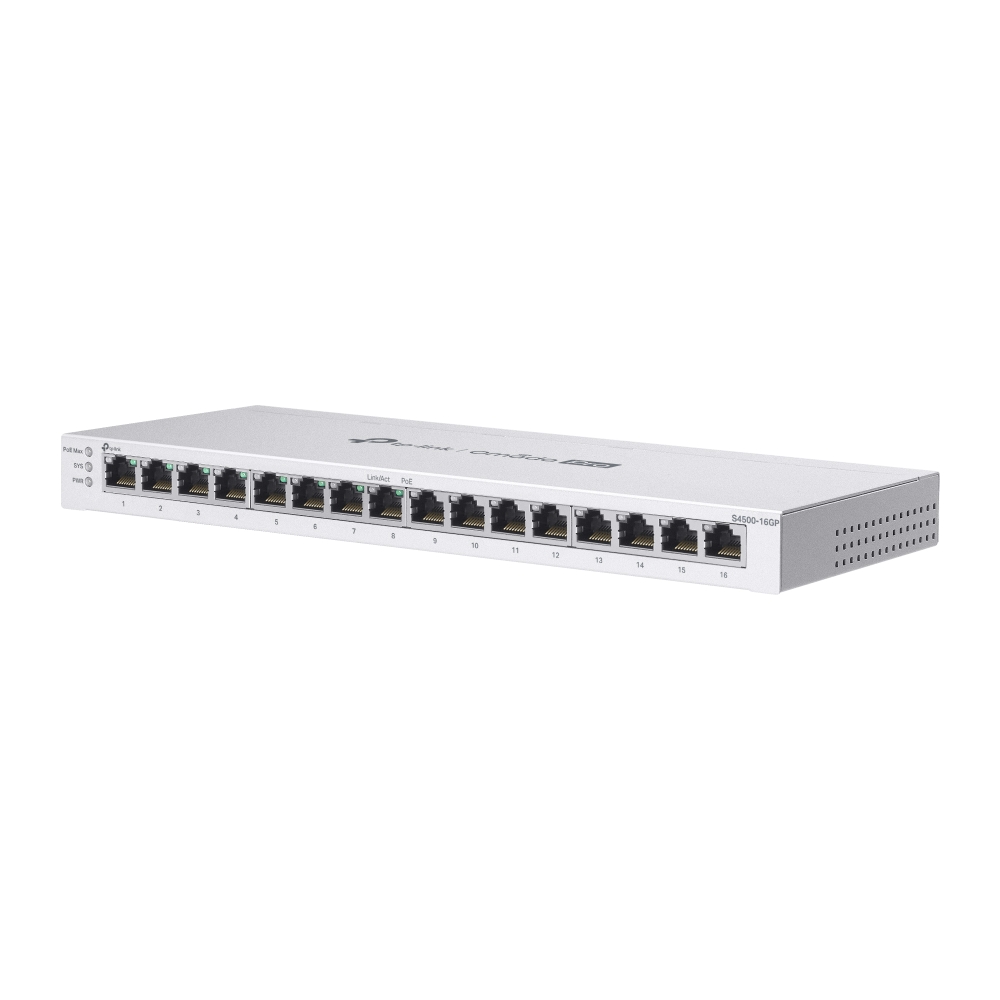

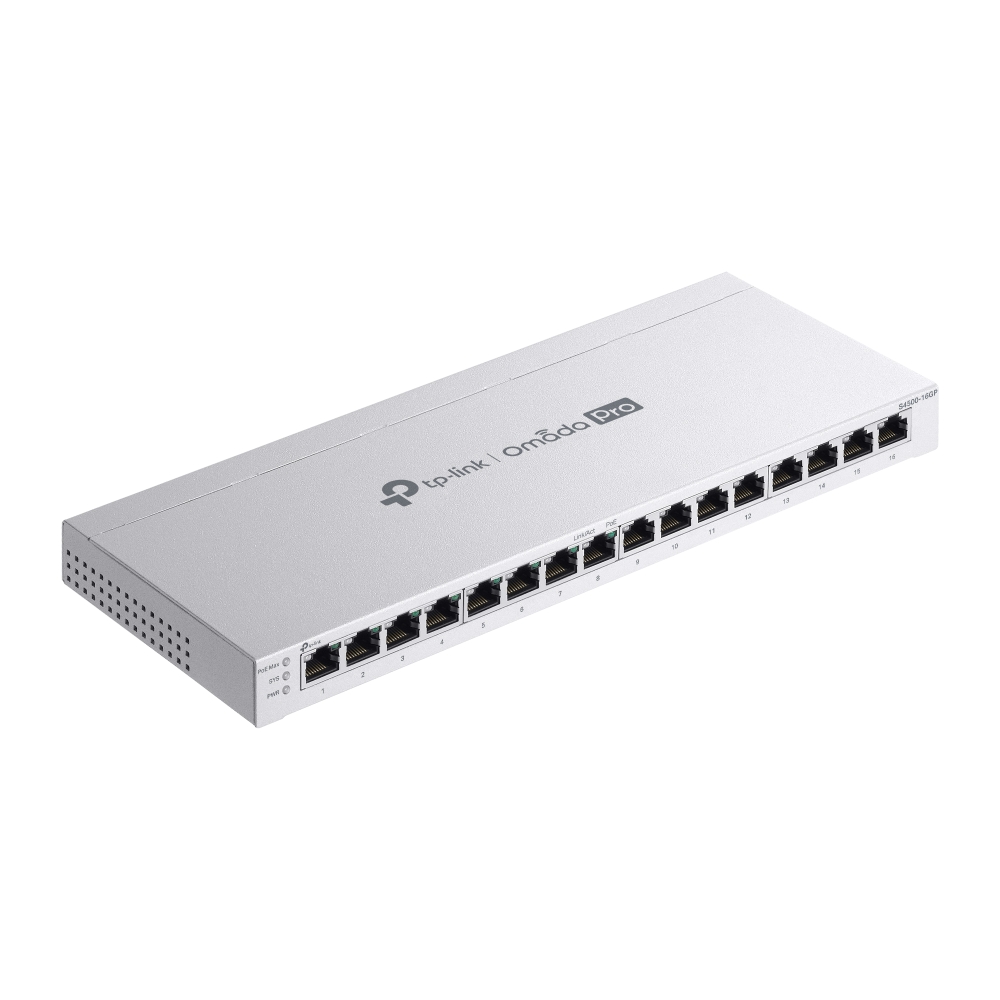

• 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
• Auto-Negotiation/Auto MDI/MDIX |
| Fan Sayısı |
Fanless |
| Fiziksel Güvenlik Kilidi |
√ |
| Güç Kaynağı |

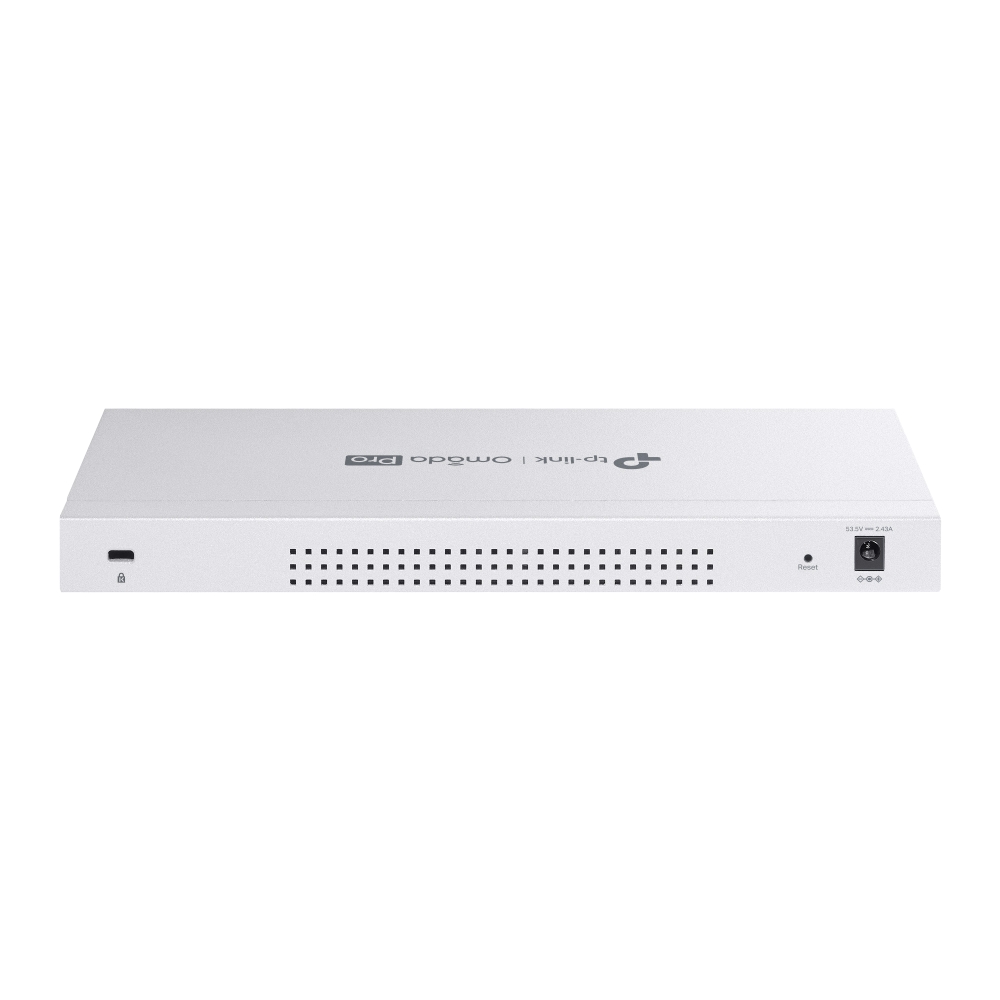

External Power Adapter (Output: 53.5 VDC/ 2.43 A) |
| PoE Portları (RJ45) |
• Standard: 802.3af/at compliant
• PoE Ports: 8 Ports
• Power Supply: 120 W* |
| Boyutlar ( W X D X H ) |
11.3×4.4×1.0 in (286×111.7×25.4 mm) |
| Montaj |
Desktop/Wall-Mounting |
| Maks. Güç Tüketimi |
146.5 W (110 V/60 Hz) (with 120 W PD connected) |
| Max Heat Dissipation |
499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected) |
| PERFORMANS |
| Anahtarlama Kapasitesi |
32 Gbps |
| Paket Yönlendirme Hızı |
23.81 Mpps |
| MAC Adres Tablosu |
8k |
| Paket Buffer Belleği |
4.1 Mbit |
| Jumbo Frame |
9 KB |
| YAZILIM ÖZELLİKLERİ |
| Quality of Service |
• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control: Port/Flow-based Rating Limit
• Smoother Performance
• Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control |
| L2 ve L2+ Özellikleri |
• 16 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• Limited IP Multicast (256 profiles and 16 entries per profile) |
| Gelişmiş Özellikler |
• Intelligent Anomaly Detection†
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule† |
| VLAN |
• VLAN Group: Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN |
| Erişim Kontrol Listesi |
• Support up to 230 entries
• Time-based ACL
• MAC ACL
• IP ACL
• IPv6 ACL
• Combined ACL
• Rule Operation: Permit/Deny
• Policy Action: Mirroring, Redirect, Rate Limit, QoS Remark
• ACL Rules Binding: Port Binding, VLAN Binding |
| Güvenlik |
• IP-MAC-Port Binding
• AAA
• 802.1X
- Port-based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control |
| IPv6 |
• IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs |
• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9) |
| YÖNETİM |
| Omada App |
Yes, through Omada Pro Controller |
| Centralized Management |
• Omada Pro Cloud-Based Controller
• Omada Pro Software Controller |
| Cloud Access |
Yes, through Omada Pro Controller |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller |
| Management Features |
• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
• Remote Packet Capture |
| DİĞERLERİ |
| Sertifika |
CE, FCC, RoHS |
| Paket İçeriği |
• S4500-16GP
• Power Adapter
• Installation Guide
• Rubber Feet |
| Sistem Gereksinimleri |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Ortam |
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
