| DONANIM ÖZELLİKLERİ |
| Standartlar ve Protokoller |
CSMA/CD |
| Arabirim |

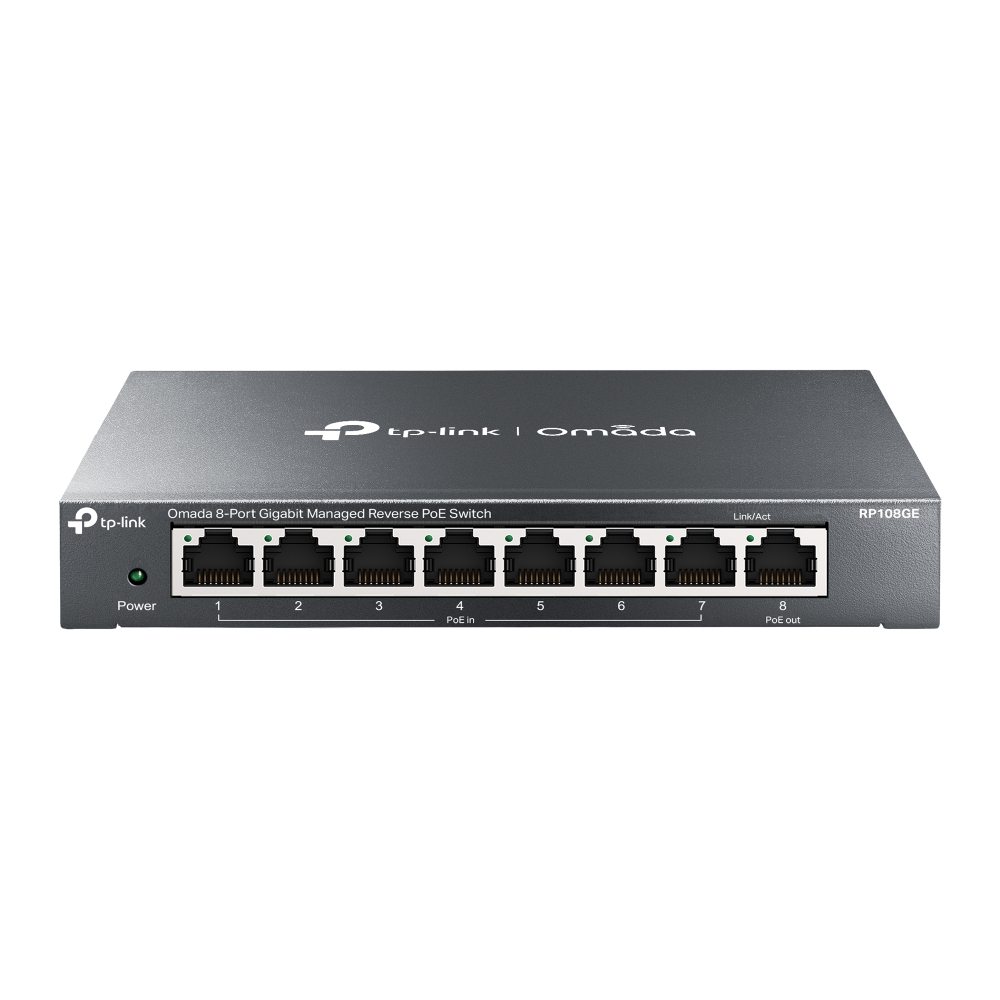

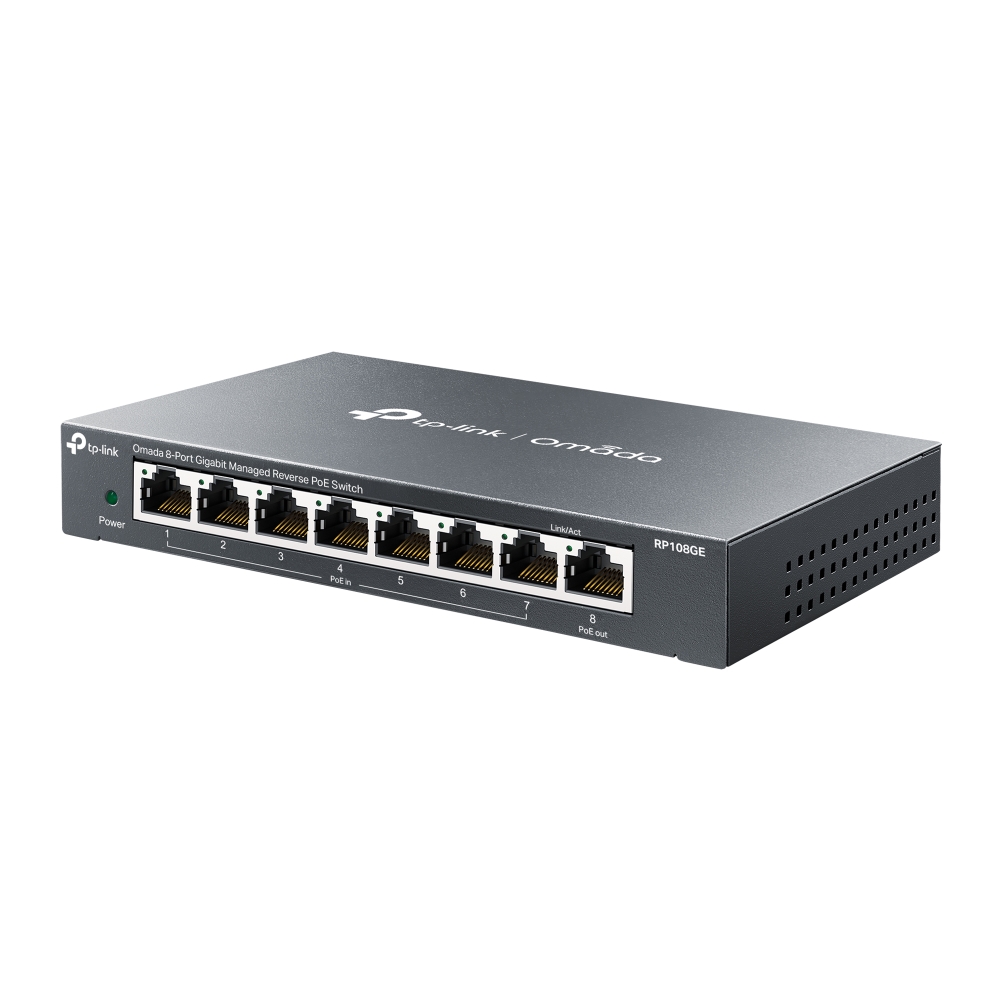

7 Passive PoE-in RJ45 Ports:
10/100/1000Mbps Auto-Negotiation
Voltage: 24/48 V (mixture is not supported)
Power pin of Ethernet cable: 4/5+ 7/8-
1 Passive PoE-out RJ45 Port:
10/100/1000Mbps Auto-Negotiation
Voltage: depending on the input voltage of PoE-in ports
Power pin of Ethernet cable: 4/5+ 7/8-

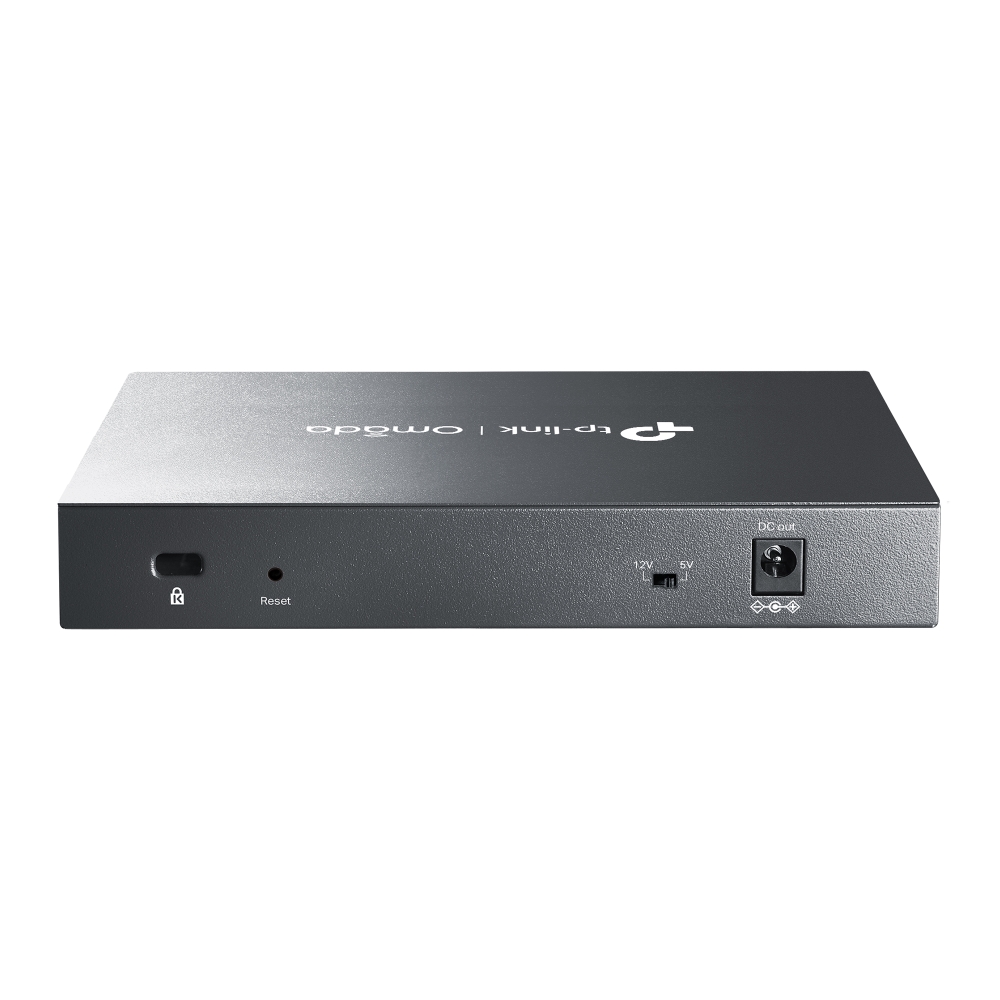

1 DC Output Port:
Voltage: 5/12 V |
| Ağ Medyası |
10Base-T:
UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 Ω STP (maximum 100 m)
100Base-TX:
UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 Ω STP (maximum 100 m)
1000Base-T:
UTP category 5e cable (maximum 100 m)
EIA/TIA-568 100 Ω STP (maximum 100 m) |
| Paket Yönlendirme Hızı |
11.9 Mbps |
| MAC Adres Tablosu |
4 K |
| Jumbo Frame |
16 KB |
| Switching Kapasitesi |
16 Gbps |
| IEEE Standartları |
IEEE802.3ab, IEEE802.3i, IEEE802.3p
IEEE802.3q, IEEE802.3x, IEEE802.3u |
| Veri Hızları |
Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex)
Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex)
Gigabit Ethernet: 2000 Mbps (Full Duplex) |
| LED Göstergesi |
Power, Link/Act LED |
| Boyutlar ( W X D X H ) |
6.2 × 3.9 × 1.0 in (158 × 99.1 × 25 mm) |
| Maks. Güç Tüketimi |
3.98 W (with no PD connected)
18.01 W (24 V with PD connected)
32.74 W (48 V with PD connected) |
| Max Heat Dissipation |
13.57 BTU/h (with no PD connected)
61.41 BTU/h (24 V with PD connected)
111.64 BTU/h (48 V with PD connected) |
| YAZILIM ÖZELLİKLERİ |
| Quality of Service |
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control |
| L2 Özellikleri |
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention |
| VLAN |
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN |
| İletim Metodu |
Store-And-Forward |
| DİĞERLERİ |
| Sertifika |
FCC, CE, RoHS |
| Paket İçeriği |
TL-RP108GE
Power Cord
Installation Guide
Rubber Feet |
| Sistem Gereksinimleri |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Ortam |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
